How does drone detection work?

Many people ask me if drone detection systems are really useful? They think drone detection is all about sensors locating drones. But that’s not the case. It’s not a single device, it’s a workflow. It’s a chain of sensors, data processors, and decision tools working in sync.

Drone detection is no longer just about finding flying objects. It’s about how different technologies work together, from sensing to responding to form a full-circle defense system.

It may sound simple, but finding drones—especially small or low-flying ones—is a serious technical challenge. In this article, I’ll walk you through how modern drone detection systems work, the technologies they use, the challenges they face, and where they’re headed in the future.

What technologies are commonly used in drone detection systems?

I have worked with drone detection systems that incorporate multiple sensors and data sources. But let’s be honest, there is no silver bullet, and each technology only solves part of the problem. Only when they are combined can a more complete picture of the situation in the air be presented.

In my opinion, the best systems combine RF scanning, radar, optical and thermal imaging, acoustic microphones, and artificial intelligence analysis to cover all angles of drone detection. Next, I will break down the technical principles of each module:

1. Radio spectrum monitoring

Use RF modules to scan frequency bands such as 2.4GHz and 5.8GHz to find drone controller signals or data packets. I have designed some systems to match these signals to specific drone models (such as DJI, Parrot, etc.). The recognition effect is really good when the drone is actively transmitting data. But when the drone uses an encrypted link or flies autonomously and there is no signal, the technology will have problems.

2. Radar detection

Use millimeter wave and phased array radars to detect drone movements by reflecting radio waves and analyzing the echoes. Some radars can detect targets with a radar cross section of 0.01 square meters at 500 meters away. In a network, multiple radars can triangulate the drone’s location. But birds, hills, or buildings can cause false alarms, so radar alone is not enough.

3. Optical and thermal sensors

This refers to the use of a dual-spectrum system that combines standard cameras and infrared imaging technology. At the same time, artificial intelligence software checks the rotor movement, fuselage shape, and thermal signature to confirm whether the target is a drone. It should be noted that our team tested it in foggy weather last month and did not achieve the expected results. Although some systems claim to be able to achieve 90% accuracy even in low-light environments. But foggy weather or strong sunlight may affect their identification.

4. Acoustic detection

Microphone arrays record drone noise – mainly from rotors and engines. Algorithms match it with known sound patterns. On clear days, I have seen these systems detect drones within 300 meters. But in busy cities, traffic and construction noise often mask drone signals, so this type of technology is not widely used.

5. Multi-sensor fusion

The top systems combine all of the above technologies. Italy’s KARMA system, for example, combines RF scanning, infrared vision, and AI-based pattern matching. I’ve tested systems that can simultaneously track a drone via radar, confirm its signal via RF, check its image via camera, and listen for sound. This significantly reduces false alarms.

How do radar, RF, and optical sensors help identify drones?

I’m often asked, “Why do we need so many sensors?” My answer is always the same: Because each sensor sees something different. Drones are designed to be hard to detect. They’re small, lightweight, and fast. Using multiple sensors gives you a complete picture.

In short, radar can detect the distance, speed and trajectory of a target, but it cannot distinguish between a drone and a pigeon because it includes all moving objects (such as birds, balloons and even debris blown by the wind) in its detection range.

RF sensors identify targets by monitoring signal transmissions: if a flying object sends recognizable control signals, it is likely a drone. RF analyzers can also infer its brand or model based on the signal structure.

Optical devices supplement the shape and movement data of the object: after the camera zooms in on the image, the AI compares what it sees with known drone designs (such as rotor layout, arm structure and fuselage shape), and thermal sensors further assist in identification by capturing the heat signature of the motor or battery.

When these three types of technologies work together, the system can accurately determine that the target is a drone and then initiate interference or tracking procedures. Without this multi-point detection mechanism, birds may be disturbed at best, or real threats may be missed at worst.

What are the challenges of detecting small or low-flying drones?

Small drones have weak radar signatures, which makes them nearly invisible to older radar systems. Even modern phased array radars have limited range for these small targets. They also fly low—under trees, next to buildings, or near fences, for example—where echoes from walls or terrain can mask their signals.

And some drones use preloaded flight paths, requiring no controller. Others use Wi-Fi or encrypted links, making them nearly impossible to detect without advanced RF analysis techniques.

While thermal imaging and acoustic detection can help, they have limitations. Small drones use composite materials and low-heat components, and are much quieter than larger drones. In noisy environments, acoustic sensors will miss them.

The only answer is better integration. I’ve seen some new integrated systems that improve signal clarity and noise rejection. These solutions aren’t cheap, but they work.

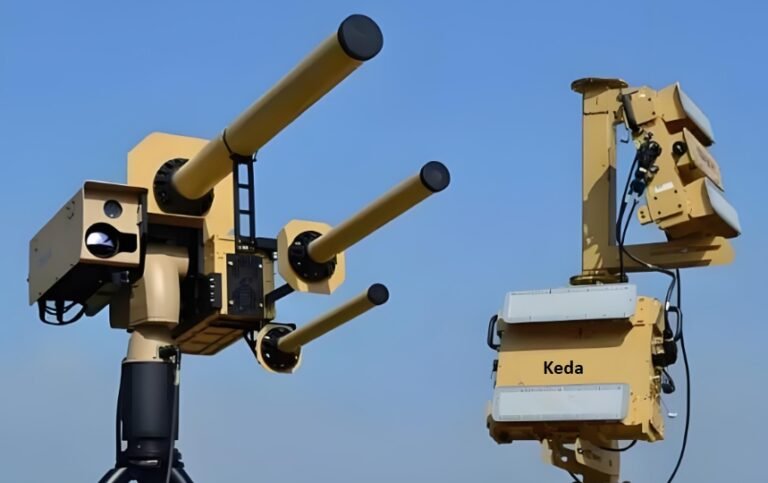

How are drone detection systems built? What does they include?

A detection system is more than just a sensor,it’s an entire ecosystem. I’ve built systems ranging from portable devices in patrol cars to fixed installations protecting power plants.

Modern drone detection platforms include sensor arrays, data processors, response mechanisms, and AI software. They form the intelligence loop from detection to action.

The hardware mainly includes sensors, radar units, RF receivers, optical cameras, and microphones. The software processing layer uses edge computing or cloud-based AI to fuse the data and generate a real-time 3D map of the airspace. It also connects the detection tools with jammers, electronic fences, and alarm systems. This allows the drone or pilot to be located in real time, typically within 50 meters.

These systems are scalable. A single node might cover 3 kilometers. But the connected devices can form a multi-layered dome over a city or critical area.

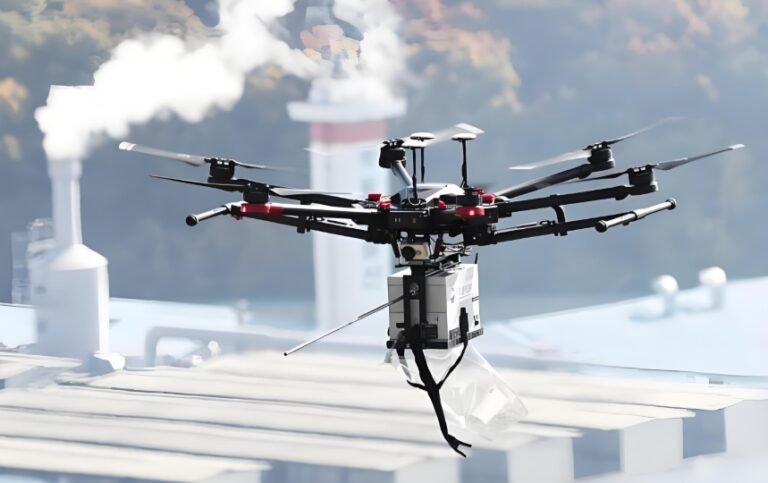

Where are drone detection systems currently used?

I have deployed detection systems in dozens of environments, from airports and stadiums to prisons and coastlines, and drone detection is now a standard part of modern security infrastructure.

1. Critical infrastructure

Airports rely on radar and RF monitors to detect unauthorized drones near flight paths. Nuclear power plants use thermal and acoustic sensors to scan for spy drones or payloads.

2. Public safety

During large events, systems track all air activity and activate jammers when necessary. Prisons use drone detection to stop contraband drops.

3. Border and maritime surveillance

Coastal systems use radar and optical systems to track drones used for smuggling. AI tools help distinguish between civilian drones and illegal drones.

These systems are not just defensive, they are proactive. They make it possible to manage low-altitude airspace like a safe zone.

What Legal Issues Come with Drone Detection?

As a practitioner, I know that in actual scenarios, any design flaws or operational errors may lead to legal risks – especially when the system involves signal monitoring or data collection, it is particularly important to balance security needs and personal rights.

From the perspective of regulatory compliance, countries have set strict restrictions on the use of radio frequencies in detection technology. For example, the Federal Aviation Administration (FAA) of the United States explicitly requires that drone detection systems deployed at airports must apply for spectrum use licenses in advance to avoid interfering with civil aviation communications; the European Union has strictly limited the radio frequency power of detection equipment through the Radio Equipment Directive (RED) to prevent illegal intrusion into public frequency bands. These regulations are intended to ensure that the application of technology does not break the legal boundaries of wireless communications.

In addition, data privacy protection should also be taken seriously. Since detection systems usually rely on sensors such as cameras and microphones to collect environmental data, such data must be encrypted and transmitted in real time, stored on compliant servers, and only authorized personnel can access it for threat assessment.

Some countries require that detection systems must record complete decision logs, including sensor data, algorithm analysis processes, and final warning results. Before initiating active countermeasures such as interference or tracking, a secondary manual verification step is required – this is not only a technical process, but also a necessary node for legal risk management, which can effectively avoid accidents such as airspace blockades and equipment interference caused by system misjudgment.

Conclusion

Drone detection isn’t about catching toys, it’s about guarding the skies. Whether guarding borders, airports, or city centers, modern systems incorporate AI, radar, RF, and vision technologies to detect threats early and respond quickly. It’s a signal war, and as drones become cheaper and smarter, it’s only just beginning. Detection systems must keep pace. But I believe that with the right investment and regulation, we can stay one step ahead.
